- Put the engine model on the horizontal position, toggle the flywheel to see if it is smooth, if there is a strong sense of raw astringent, check the connection rod, whether the cylinder has oil and dust, and if so, please use toilet paper to erase. Toggle the flywheel feel pressure rebound within the cylinder body is a normal phenomenon, the cylinder is sealed.
- The packing bag of alcohol lamp cotton wear into the metal cap lamp.
- Please go to the pharmacy to buy 95% purity alcohol, anhydrous industrial alcohol better. Fill the alcohol lamp to less than two-thirds.
- Alcohol lamp to the alcohol lamp, at the premise of ensuring safety, ignite the alcohol lamp about 2 minutes after the flywheel, until the flywheel automatic operation so far, the whole process of heating, hands may not touch.
- Led lights can be directly into the generator output interface, if not inserted, the exchange can be positive and negative, led a long foot for the cathode.
Features:
Name: for Stirling Engine Model
Model: 479857
Specifications:
Color: silver
Materials: brushed aluminum alloy stainless steel thickened glass
Size: about 155*130*80mm
Flywheel Diameter: about 60mm

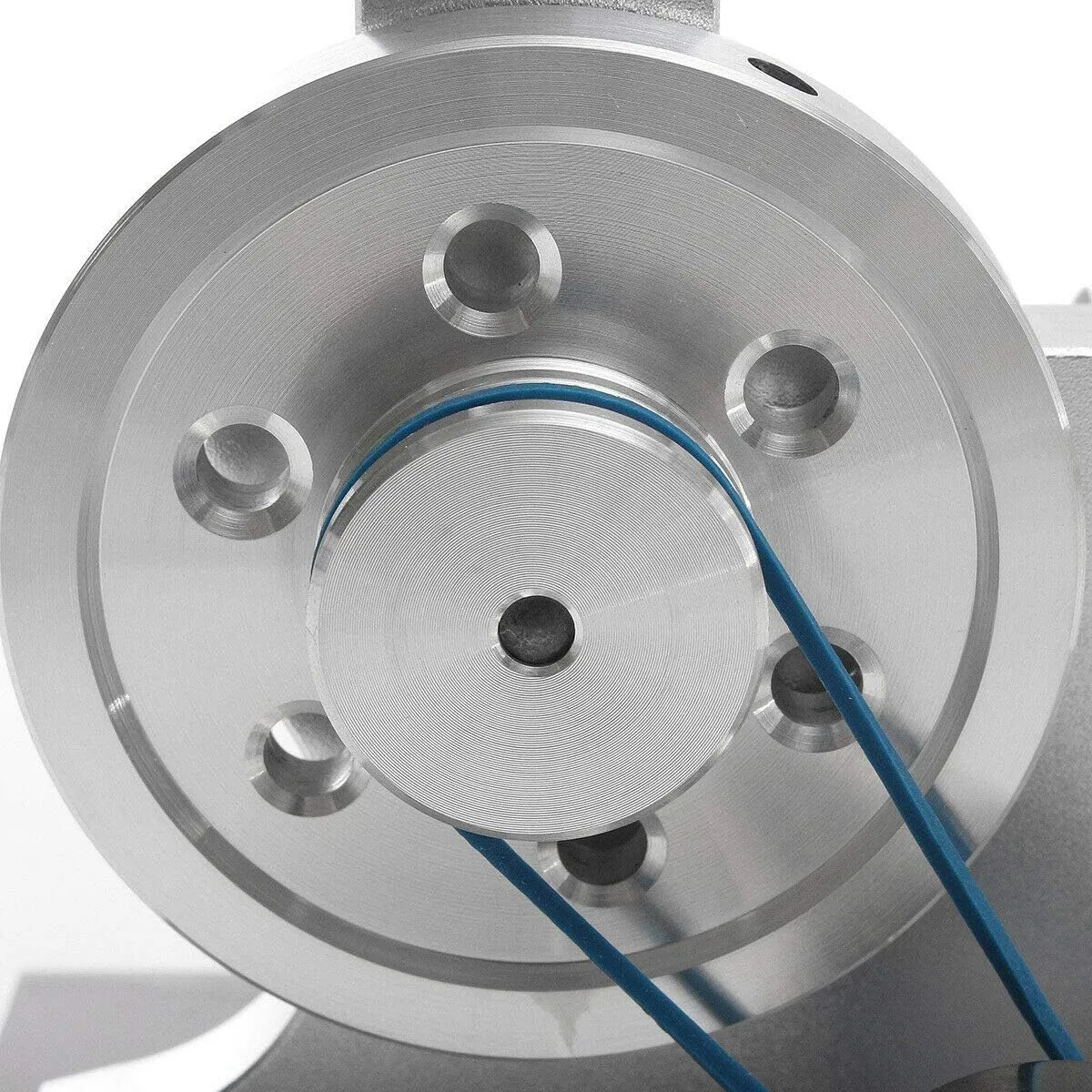

Transmission Wheel Diameter: about 25mm
Power Cylinder Bore: about 12.5mm
Piston Stroke: about 13mm
Generating Voltage: 3-5v
Suitable Age: 8 years old and above
Experiment Type: physical
This is an external combustion engine in which the fuel is burned continuously, and the piston is moved by the expansion of air (or helium or hydrogen) as a medium, and the expansion gas is cooled in the cold chamber, and the cycle is repeated. Only a small alcohol lamp, you can make it fast rotation and generate strong power.
As the external combustion engine, it avoid the explosion risk when traditional internal combustion engine working, in order to achieve a high efficiency, low noise, low pollution and low operating costs.
The biggest advantage of the external combustion engine is that the output and efficiency are not influenced by altitude, very suitable for high altitude areas.
Package Includes:
1 x Stirling Engine Model
1 x Alcohol Lamp
1 x Standby Test Tube
1 x Conveyor Belt
