DESCRIPTION

This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful blue hue. It's super bright and designed for viewing from distances up to 23 feet (7 meters) away. Digits have seven white segments on a black surface and we give you a set of two alphanumeric displays as well as a driver board so you can make a clock or a four-letter word.

Like our other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

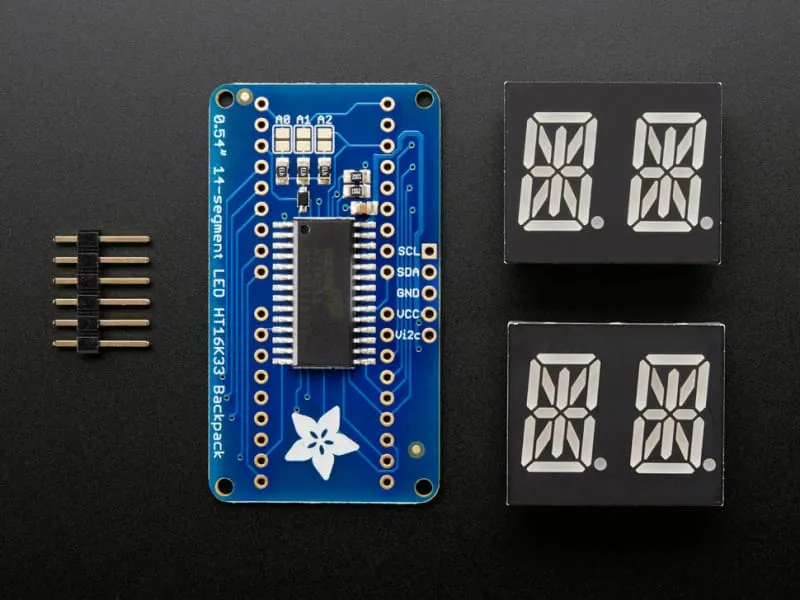

This product comes with:

• 2 x Ultra-Bright Blue Alphanumeric Display - 0.54" Digit Height for 4 digits total

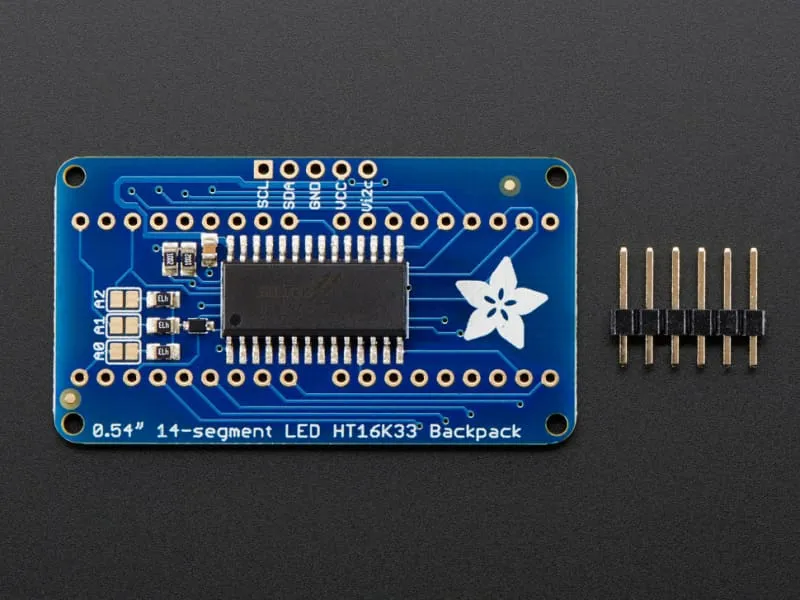

• 1 x 14-segment LED Alphanumeric Backpack
• 1 x 5-pin header

Please Note:

• A bit of soldering is required to attach the matrix to the backpack but it's very easy to do and only takes about 5 minutes.

FEATURES

This board/chip uses I2C 7-bit addresses between 0x70-0x77, selectable with jumpers.

Alphanumeric Display Dimensions:

• 21mm x 25mm x 7mm / 0.8" x 1" x 0.3"
• Height w/ Pins: 14mm / 0.6"
• Weight: 4.7g

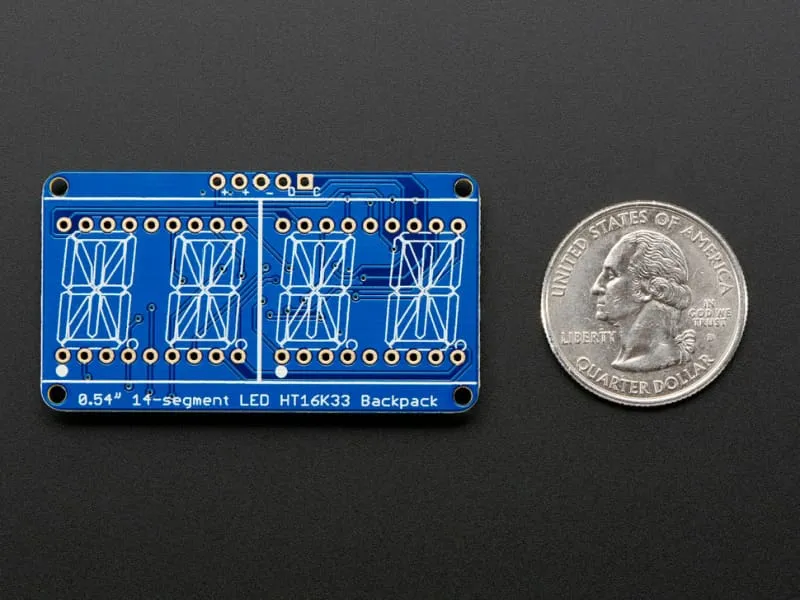

Backpack Dimensions:

• 28mm x 51mm x 4mm / 1.1" x 2" x 0.2"
• Weight: 5.5g

RESOURCES

• Assembly Tutorial
